Power Apps: Custom Components & Component Libraries

Overview

Custom Components in Power Apps enable the creation of reusable UI elements such as headers, footers, navigation menus, modals, and more. When organized in a Component Library, these elements can be shared across multiple apps, ensuring design consistency and maintainability.

Why Use Component Libraries?

🔁 Reusability: Use components across many apps without rebuilding.
🧩 Consistency: Maintain a unified UI/UX across all your Power Apps.
🔧 Configurability: Use custom properties for dynamic behavior.
📦 Maintainability: Update once, use everywhere.

Recommended Component Structure

Example Shared Components

Component	Purpose
`cmp_Header`	Title bar with logo and back button
`cmp_Footer`	Footer text or quick links
`cmp_SideMenu`	Navigation drawer or menu panel
`cmp_Spinner`	Loading animation
`cmp_Toast`	Temporary alert/message system

Best Practices

1. Create a Component Library App

Navigate to Apps > Component Libraries > + New Component Library
Name it clearly, e.g., UI_Components_Library

2. Use Clear Naming Conventions

cmp_ prefix for components: cmp_Header, cmp_NavMenu
Group similar components by name: cmp_TabUser, cmp_TabAdmin

Example: Custom Components & UI_Components_Library

Overview

This document outlines the structure and use of a shared component library named UI_Components_Library in Power Apps. It provides reusable UI elements like headers, footers, and side menus for consistent and scalable app development.

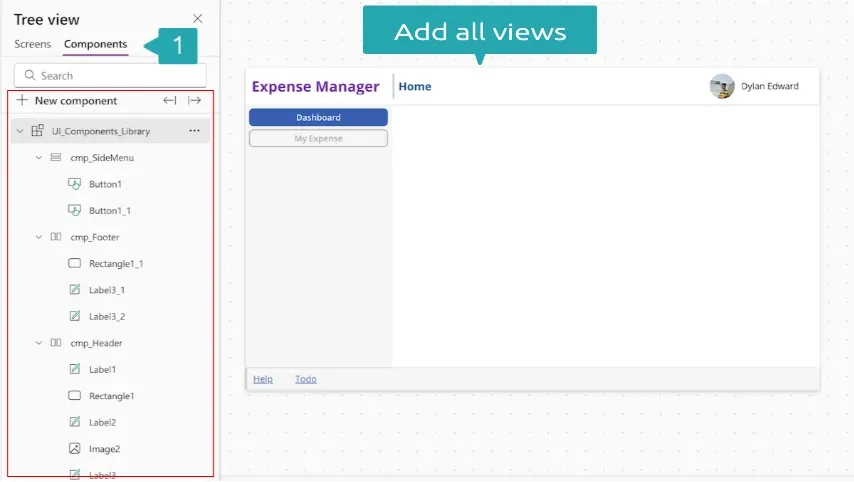

Library Structure (Based on Current Screenshot)

Component Library Name: UI_Components_Library

Components Included

Component	Description
`cmp_SideMenu`	Vertical navigation menu with two buttons: `Dashboard`, `My Expense`
`cmp_Footer`	Footer with help and task links, includes rectangle and labels
`cmp_Header`	Top bar with app title ("Expense Manager"), user name ("Dylan Edward"), and avatar

Component Details

📋 `cmp_SideMenu`

Controls: Button1, Button1_1
Purpose: Navigation menu for screen switching

📋 `cmp_Header`

Controls: Label1, Label2, Label3, Image2, Rectangle1
Purpose: Header with branding, current screen, and user info
Suggested Properties:
- Title (Text) – e.g., “Expense Manager”
- UserName (Text) – e.g., “Dylan Edward”
- UserImage (Media/Image) – bound to profile photo

📋 `cmp_Footer`

Controls: Rectangle1_1, Label3_1, Label3_2
Purpose: Bottom bar with links like “Help”, “Todo”
Suggested Properties:
- HelpLink (Text or Action)
- TodoLink (Text or Action)

Creating Custom Events in Power Apps Components

Custom events let you raise actions from a component (like a button click) to the app-level logic.

🔨 Step-by-Step: Create a Custom Event

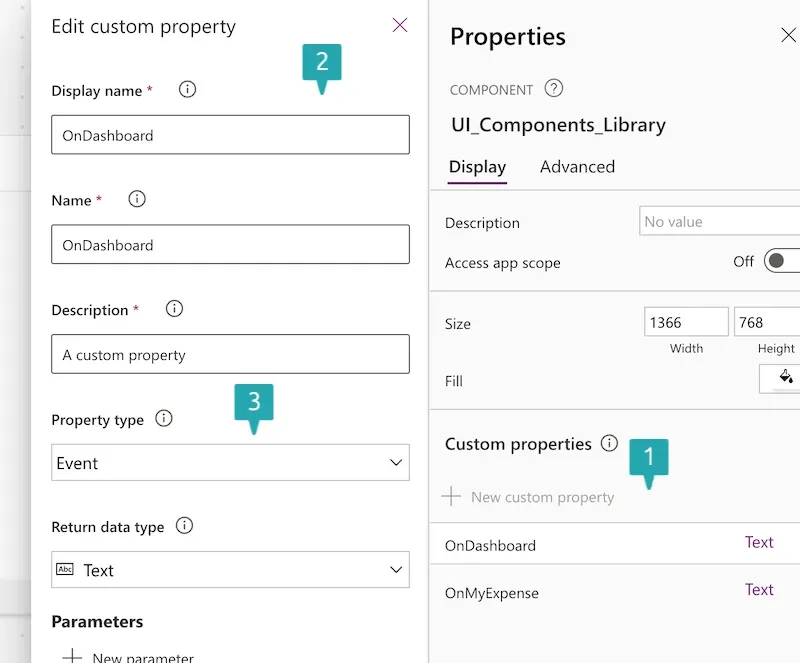

1. Define a Custom Property in the Component

Go to the Component Properties Panel
Click “+ New custom property”
Set:- Display name: OnDashboard- Property type: Event- Return data type: Text (or appropriate type)

2. Trigger the Event from Component Logic

In your component (e.g. cmp_SideMenu), use this code in a control’s OnSelect:

UI_Components_Library.OnDashboard();
Set(_active, "Dashboard");

Set(_active, "Dashboard");

is used to update a variable (_active) to reflect the currently selected menu item (in this case, "Dashboard"). This kind of setup is great for:

Highlighting the active menu button
Conditionally displaying content
Styling components based on selection

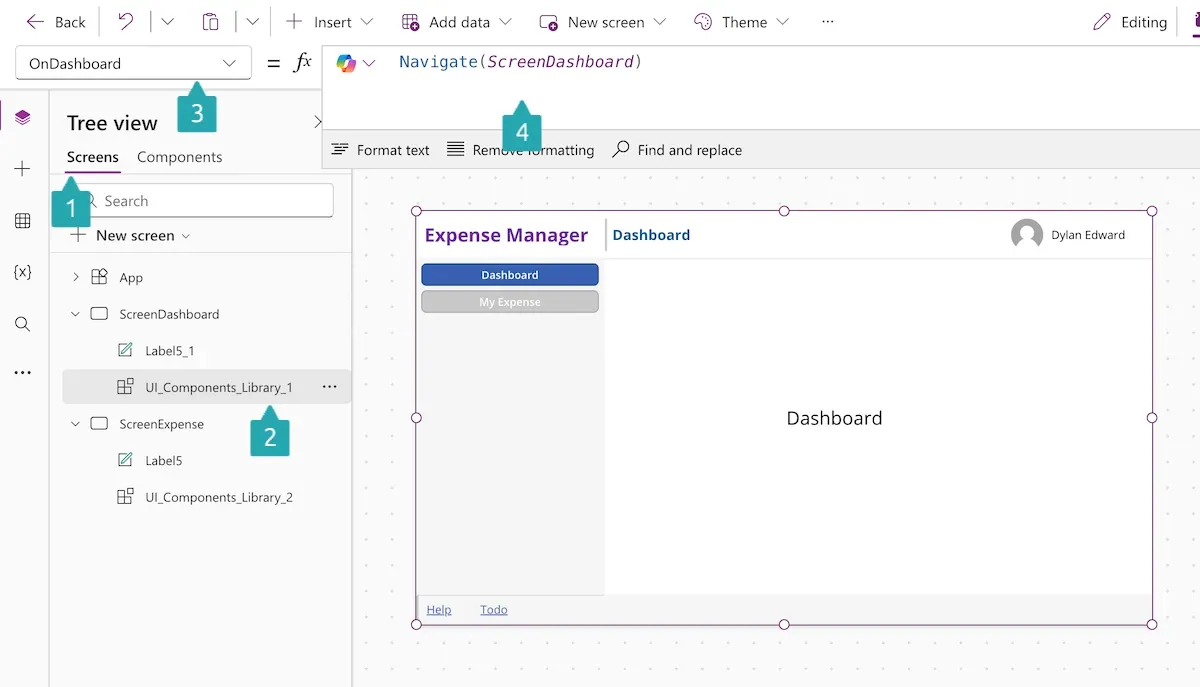

3. Handle the Event in the App

Integration in Main App

In the screenshot, the components are already being used in a screen:

The Header is pinned at the top with the app name and user.
The SideMenu is placed to the left for navigation.
The Footer appears at the bottom with links.

Power Apps – Project Structure & Custom Component Events

Project Structure Best Practices

To maintain a scalable and organized Power Apps solution, follow these layout and structure best practices:

🔧 Use Custom Components (Component Libraries)

Encapsulate shared UI elements as reusable components.
Ideal for: Headers, Footers, Side Menus, and Navigation Bars.

├── UI_Components_Library
│   ├── cmp_Header
│   ├── cmp_Footer
│   └── cmp_SideMenu

App Screens:- ScreenDashboard- ScreenExpenseExample Components
cmp_Header – includes labels and profile image.
cmp_Footer – contains navigation text/buttons.
cmp_SideMenu – houses navigation buttons like "Dashboard" and "My Expense".

✅ Benefits

Modularity: Clean separation of UI and logic.
Reusability: One component used across multiple screens.
Scalability: Easier maintenance and updates.
